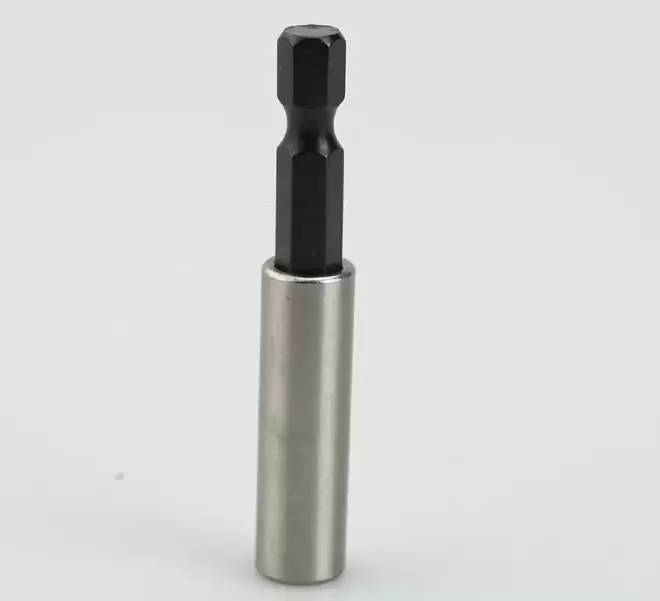

In modern industrial assembly and manufacturing, efficiency and precision are no longer optional—they are essential. The magnetic bit holder extension has emerged as a critical tool in high-speed production lines, enabling users to reach tight spaces, maintain control over fasteners, and reduce operational downtime. Shangfeng Machinery Co., Ltd., a leading manufacturer of screwdriver bits, ratchets, sockets, and bit holders, has developed advanced magnetic bit holder extensions that combine engineering precision, durability, and versatility to meet the demands of professional users worldwide.
Core Functionality and Industrial Value
A magnetic bit holder extension serves multiple purposes in assembly operations:
- Extended Reach: It allows operators to access recessed or hard-to-reach fasteners without compromising torque application.
- Magnetic Retention: Built-in magnets hold screws firmly, minimizing the risk of drops and misalignment.
- Universal Compatibility: Designed to work with a wide range of standard screwdriver bits and drivers, including hex, Phillips, and Torx types.
- Durability: Manufactured using high-strength steel with heat-treated tips to withstand high torque and repetitive use.
By integrating these features, a magnetic bit holder extension enhances both operational speed and accuracy, making it indispensable in automotive, electronics, and appliance assembly lines.
Technical Specifications and Performance Metrics
When evaluating a magnetic bit holder extension, certain technical parameters are critical:
| Parameter | Typical Specification | Industrial Advantage |
|---|---|---|
| Length | 50 mm – 250 mm | Access recessed screws in confined spaces |
| Tip Hardness | HRC 58–62 | Reduces wear and deformation under torque |
| Shank Diameter | 1/4 inch (6.35 mm) | Standard compatibility with most drivers |
| Magnet Strength | 300–450 gauss | Securely holds fasteners to prevent drops |
| Material | Chrome Vanadium Steel (Cr-V) | Corrosion-resistant and durable |
| Torque Rating | Up to 50 Nm | Suitable for heavy-duty assembly |
These metrics provide measurable assurance that the tool can perform in industrial-grade applications where precision and repeatability are paramount.
Engineering Advantages Over Conventional Bit Holders
1. Enhanced Screw Retention:
Unlike standard bit holders, magnetic versions prevent screw drops in vertical or overhead operations, improving assembly efficiency and reducing material waste.
2. Increased Access and Reach:
Extensions ranging from 50 mm to 250 mm allow for flexible positioning in crowded engine bays, electronic enclosures, and appliance interiors. This eliminates the need for multiple tool adjustments or secondary operations.
3. Precision Manufacturing:
Shangfeng Machinery employs Taiwan cold-forging technology, ensuring tight tolerances in diameter and length. This guarantees a snug fit with driver chuck systems and prevents wobble, even under high-speed rotation.
4. Torque Endurance:
High-grade Chrome Vanadium steel and heat treatment provide HRC 58–62 hardness, allowing the extension to handle repeated torque cycles without tip deformation or shank bending.
Applications Across Industries
Automotive Assembly:
Magnetic bit holder extensions are essential for installing screws in tight engine compartments, dashboards, and interior panels. Their extended reach and secure fastener holding reduce assembly time and errors.
Electronics Manufacturing:
In compact electronic devices such as smartphones, laptops, or home appliances, precise screw alignment is critical. Magnetic extensions prevent cross-threading and drop-related damages.
Furniture and Woodworking:
Recessed screws in cabinets, panels, and fittings are easily accessed with extensions, allowing for ergonomic operation and consistent torque application.
Industrial Equipment Maintenance:
In repair and maintenance tasks, magnetic extensions improve accessibility for screws in enclosed machinery, minimizing downtime and avoiding costly disassembly.
Integration with Screwdriver Systems
Shangfeng’s magnetic bit holder extensions are engineered for seamless integration with a variety of screwdriver systems:
- Ratchet Screwdrivers: Extensions allow operators to reach fasteners without repositioning the handle.
- Cordless Power Drivers: Compatible with standard hex chucks, providing secure connection and torque transmission.
- Impact Drivers: Certain extensions are rated for high torque applications, suitable for impact-driven assembly.
This interoperability ensures that companies do not need specialized or proprietary tools, reducing capital investment and simplifying maintenance.
Safety and Ergonomics
The use of magnetic bit holder extensions also enhances workplace safety:
- Reduces the likelihood of dropped screws that could cause machine jams or operator injuries.
- Minimizes operator strain by allowing a natural hand position, especially in overhead or tight-space operations.
- Heat-treated and corrosion-resistant construction ensures consistent performance, reducing the risk of tool failure during critical assembly processes.
Selection Criteria for Industrial Use
When choosing a magnetic bit holder extension, key considerations include:
- Length: Longer extensions provide reach but may reduce torque transfer if not engineered correctly.
- Magnet Strength: Stronger magnets ensure screw retention but should not interfere with electronic components.
- Material and Hardness: Determines durability and resistance to repeated torque cycles.
- Compatibility: Must fit driver and bit types used in production to avoid workflow interruptions.
Shangfeng Machinery offers multiple lengths and specifications, allowing companies to tailor tool selection to their operational needs.
Conclusion
For modern industrial assembly, the magnetic bit holder extension is a precision tool that combines reach, torque endurance, and fastener security. Shangfeng Machinery Co., Ltd. delivers solutions engineered with high-quality materials, precise manufacturing, and international standards compliance (DIN & ANSI). By investing in magnetic bit holder extensions, manufacturers can streamline assembly, improve quality control, and reduce operational downtime, making these tools a critical component in professional industrial toolkits.
